Bulk Cement Tank Trailer

Contact Now
Specification For Bulk Cement Tank Trailer
Manufacturer Shandong Shengrun Automobile Co., Ltd.
Type Bulk cement tanker trailer
Bulker Body
Shape V or W type shape
Dimension 9500-13500*2500*3900 ( can be customized )
Payload 28 – 150 tons
Volume 23 – 120 cbm
Tanker body 6mm carbon steel/aluminum alloy
Manhole cover Diameter 500mm, 3 – 5 pcs
Engine Compressor PTO or Weichai, 12 – 15 cbm double-cylinder
Discharge Valve 3 or 4 inch ball valve / API valve
Spry cooling system 2 Pcs Water tankers Pneumatic Power
Discharging pipe 3″ or 4″ rubber pipe, 1 piece, 6 m / each
Chassis
Main Beam Q345 Carbon steel material
Axles 2 – 4 pcs 13 – 20tons BPW or Fuwa Axles
Suspenssion SAF heavy duty Mechanical type
Landing Leg JOST E100 or A400 Heavy duty type
Brake system 6pcs T30/30 Brake Chambers, WABCO relay valve
Wheel rim 9.0*22.5 / 8.0-20 / 8.5-20 better brand 12pcs
Tire 12 pcs 12R22.5 or 315/80R22.5 or 12.00R24 Triangle Brand
King Pin JOST 2″ or 3.5 ” Bolting Type
Any parts fitted could according to clients request, contact us to get more.
Quadratic blow 1″ diameter check valve
Painting Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light
Date of delivery 20 days after we received 30% of contract value T/T down payment.

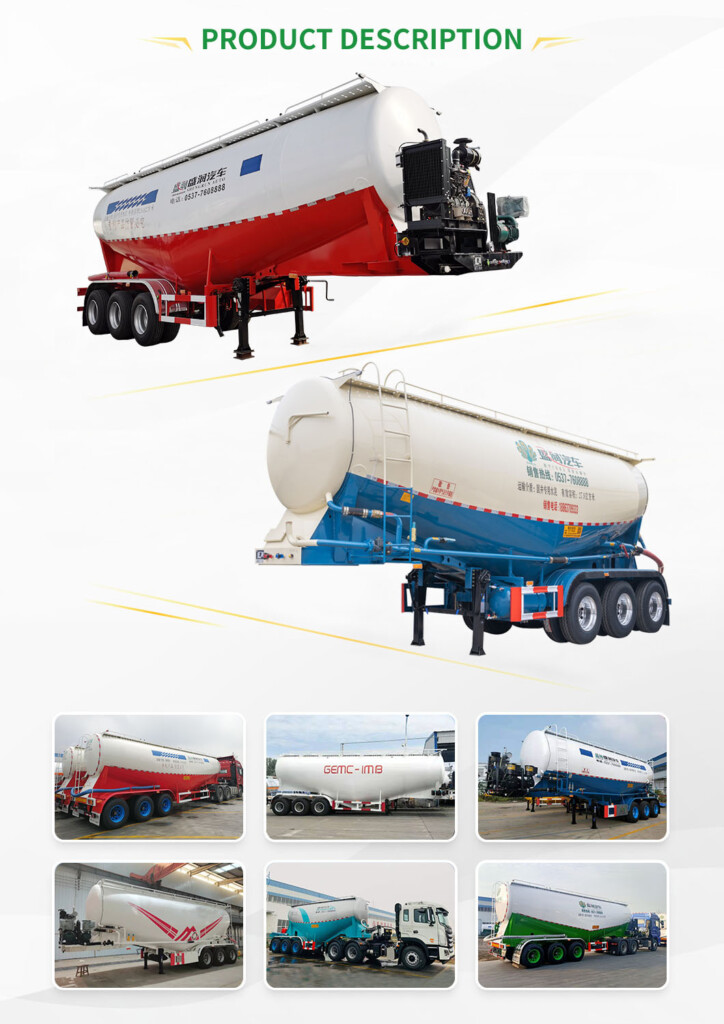

Shengrun powder bulk cement tanker trailer, is for large quantities of dust materials (bulk cement) transport of special vehicles. It is suitable for the transportation of fly ash, cement, limestone, ore powder and other particles whose particle diameter is not more than 0.1m.
We choose high-tensile carbon steel material, welded by automatic Submerged-Arc processes. Tanks using automatic longitudinal/ring to the welding seam is firm and level off, can be independent warehouse storage, shipment different abrasive materials, unloeding speed, low residual rate, safety performance is high, easy to operate. Good performance of simple structure, convenient maintenance, vulcani zation.
Shape is round, V or M tanks, material can choose carbon steel, stainless steel, aluminum alloy. Can choose air compressor or direct drive transmission shaft (optional belt drive and motor drive). We adopt world famous brand of parts, like JOST, WABCO braking valve etc.
Established in 1982, we are a professional manufacturer of semi trailers, provide customized service, design as the customers’ every request.
We have a professional trailer design department , rich production experience, short delivery time. Our factory has passed ISO9001 quality system certification. Our phone service 24 hours service for you. Our cooperation can be ODM or OEM mode.
Feature:
1. Loading rate >98% fully filling
2. Residual rate <0.2%
3. Delivery height >25m suitable most silo
4. Faster unloading >1.5ton/min save fuel

Transportation
We usually adopt shipping by bulk cargo, flat rack, container container and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trailers will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:10-20 working days after payment receipt confirmed (based on actual quantity).
Packing:Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.

After-sales service
1.12months for main parts (engine, axle, body and beam, etc).
2. Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports.
4. Engineer available service oversea.

FAQ:
Q1. Are you a manufacturer?
Yes, we have been in special vehicle manufacturing and marketing for over 25 years.

Q2. What markets do your vehicle export to?
Europe, North & South America, South-East Asia, Africa, Oceanica, Middle East countries etc.

Q3. What information should I let you know if I want to get a quotation?
Please let us know your purpose, road condition, cargo type, tons of your cargo, dimensions of the trailer, quantity etc. The more info you provide, the more accurate model and the price you will get.

Q4. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.

Q5. How can I get the price of your vehicle?
You can connect with us through any contact information. Our personalized service person will respond to you within 24 hours.
