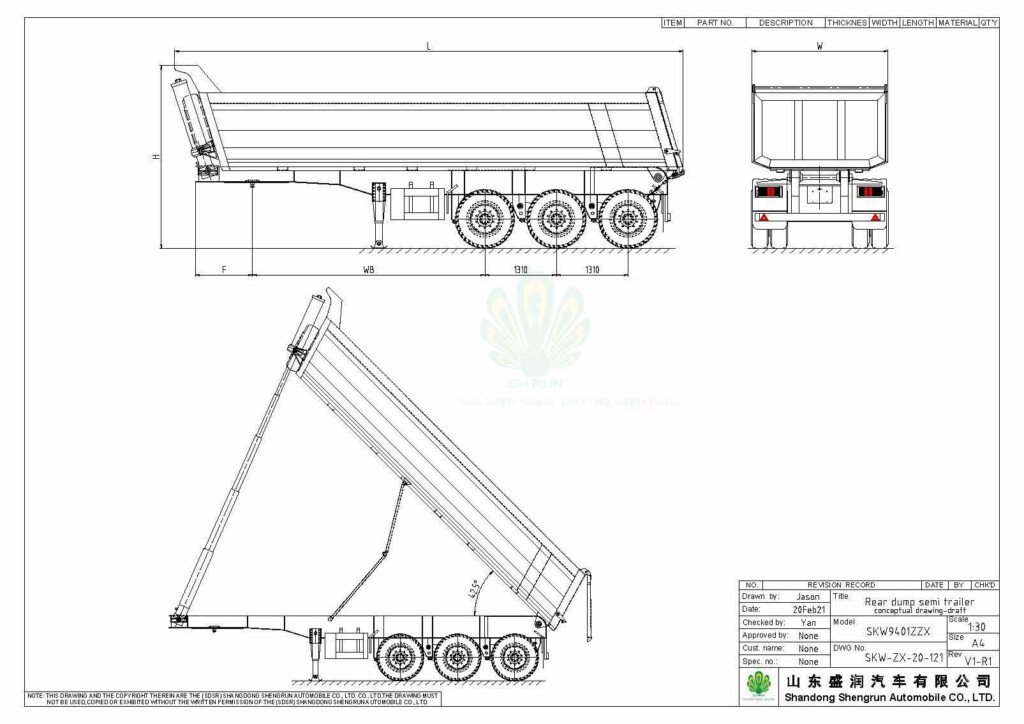

| Specification For Dump Trailer | |
| Manufacturer | Shandong Shengrun Automobile CO., LTD. |
| Type | Dump semi trailer |
| Semi trailer Dimension | 11280*2495*3970mm(can be customized) |
| Tare Weight | About 10-15T |
| Total Volume | 37m3 or less than 80tons |
| Side wall thicknes(mm) | 3mm-6mm Q235 steel |
| Bottom plate thickness(mm) | 5mm-8mm Q235steel or can be optional |
| Lifting system | Full set of Hyva(FC214-5-07130)Hydraulic Lifting Cylinder |

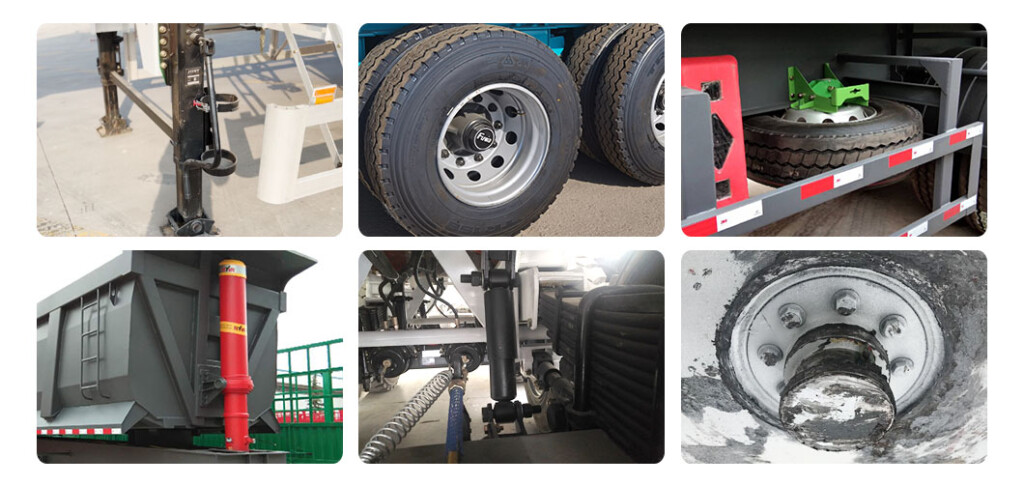

| Chassis | |
| Main beam | Q345B Steel |
| Axle | 13T/16T,FUWA/BPW/Huajing Brand |
| Spring leaf | 90(w)mm*13(thickness)mm*10Layer or 100mm*12mm*12 |
| King pin | Jost brand 2.0 0r 3.5 inch bolts type or welding type |
| Landing Gear | JOST brand C200T or China brand 28Tons (Double speed) |
| Suspension | Mechanical suspension/America Type/Germany Type |
| Rim | 9.00-22.5/8.00-20/8.5-20China Brand |
| Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Various tire brands are available |
| Pneumatic Braking system | WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber, 45L air tank |
| ABS | Optional |
| Tool box | One piece,1m*0.5m*0.5m(Size can be choose freely) |
| Painting | 1 coat of anticorrosive prime, 2coats of final paint |
| Any parts fitted could according to clients request, contact us to get more. | |

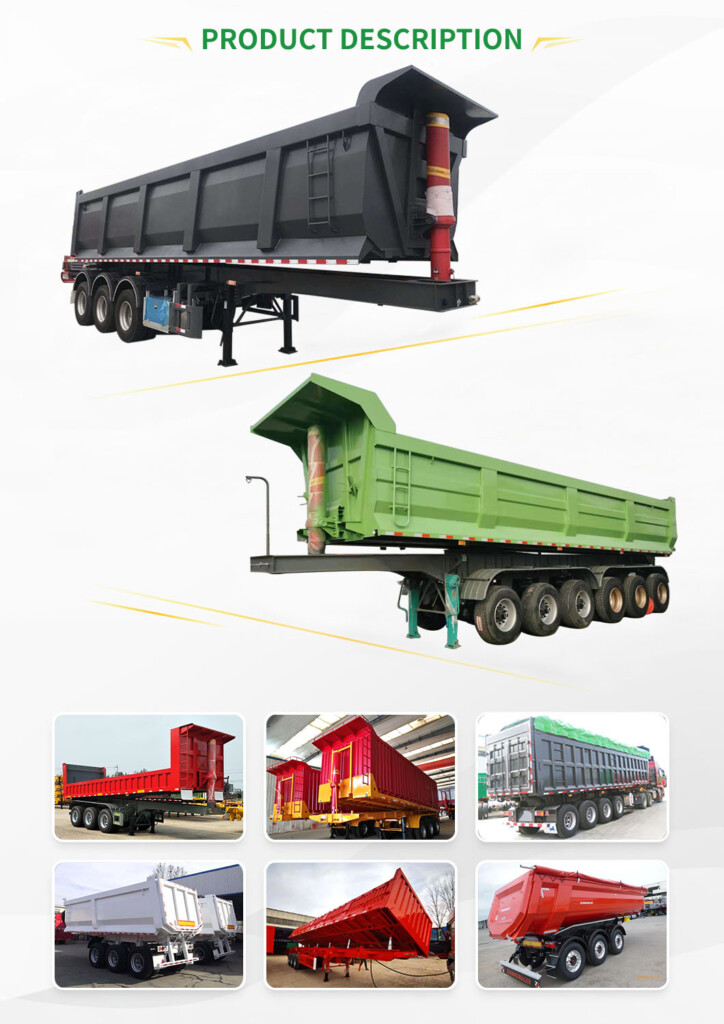

Shengrun U-shaped dump semi trailer is used to transport of bulk cargo, coal, ore and build materials. The corner of U-shaped box doesn’t exist dead ends, unloading more clean; Adopt T700 High strength plates to lower the tare weight; reduce the damage of ore head on the box; U-shaped structure of the lower center of gravity to avoid the goods spilled.We adopt world famous brand of parts, like JOST, WABCO braking valve, etc.

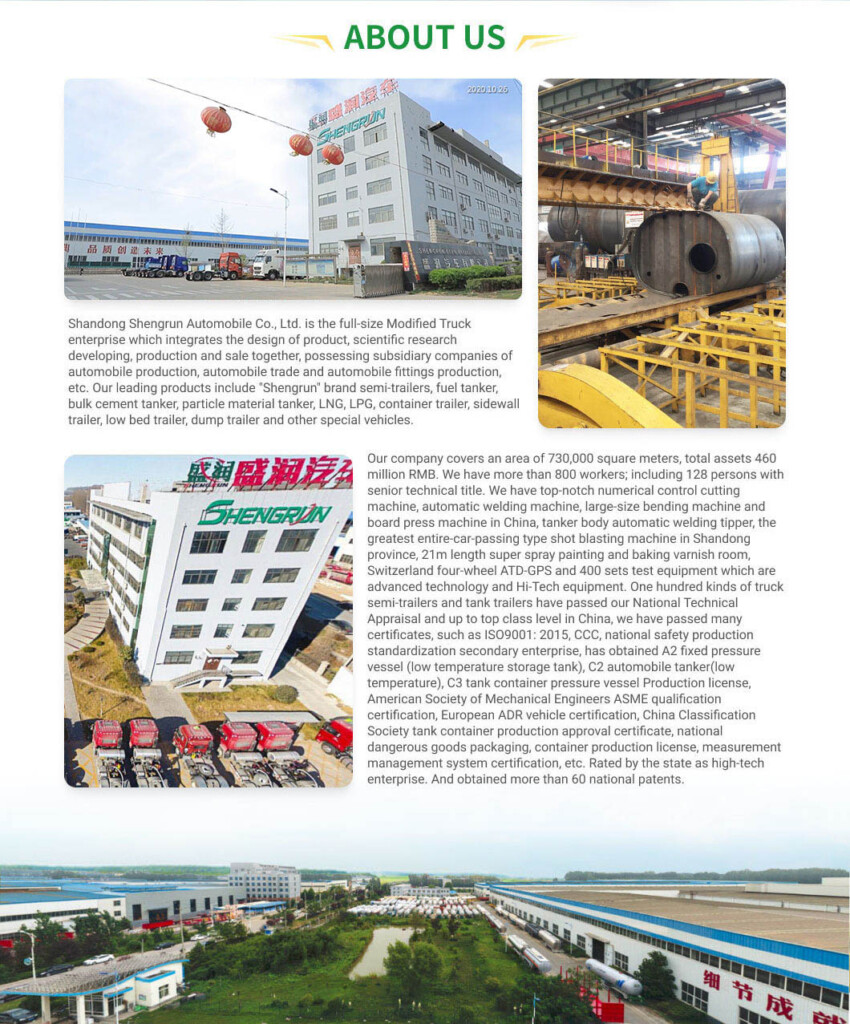

Established in 1982, we are a professional manufacturer of semi trailers, provide customized service, design as the customers’ every request.
We have a professional trailer design department , rich production experience, short delivery time. Our factory has passed ISO9001 quality system certification. Our phone service 24 hours service for you. Our cooperation can be ODM or OEM mode.
Transportation
We usually adopt shipping by bulk cargo, flat rack, container container and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trailers will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:10-20 working days after payment receipt confirmed (based on actual quantity).
Packing:Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales service
1.12months for main parts (engine, axle, body and beam, etc).
2. Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports.
4. Engineer available service oversea.
FAQ:
Q1. Are you a manufacturer?
Yes, we have been in special vehicle manufacturing and marketing for over 25 years.
Q2. What markets do your vehicle export to?
Europe, North & South America, South-East Asia, Africa, Oceanica, Middle East countries etc.
Q3. What information should I let you know if I want to get a quotation?
Please let us know your purpose, road condition, cargo type, tons of your cargo, dimensions of the trailer, quantity etc. The more info you provide, the more accurate model and the price you will get.
Q4. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.
Q5. How can I get the price of your vehicle?
You can connect with us through any contact information. Our personalized service person will respond to you within 24 hours.
