Flatbed Semi Trailer

Contact Now
Specification For Flatbed Semi Trailer
Manufacturer Shandong Shengrun Automobile CO., LTD.
Type Flatbed semi trailer
Tare Weight Approx. 6.2 T
Dimension 12400*2500*1550mm
Loading Capacity 30-100T

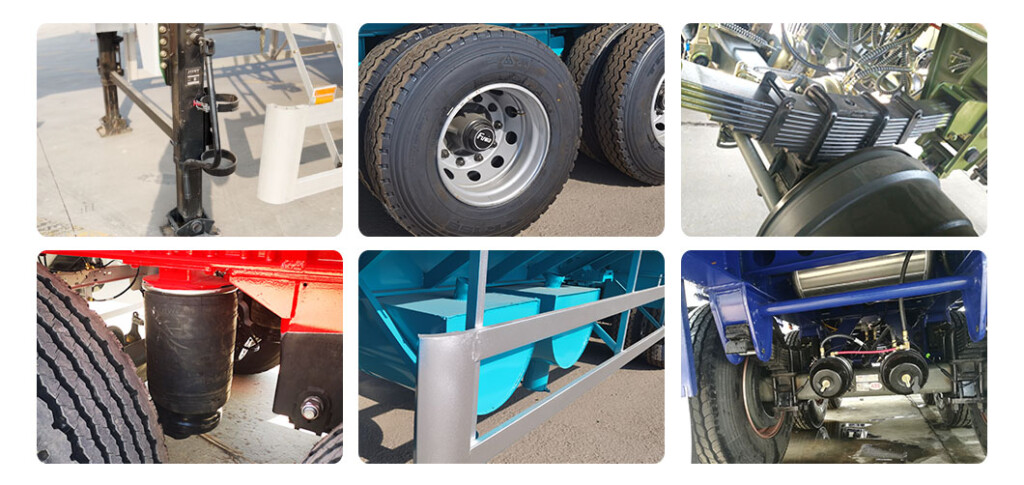

Axle 13T/16T, FUWA/BPW/SHENGRUN, etc
Rim 9.00*22.5/8.00-20/8.5-20
Tire 12.00R22.5 ; 315/80R22.5; 11.00R20; 12.00R20 brand can be optional
Suspension Mechanical suspension(Germany type or America type) or Air suspension
Leaf Spring 90(width)mm*13(thickness)mm*10 layer(especial for exporting market)
King pin Jost brand 2.0 or 3.5 inch
Spport leg Jost brand two speed
Main beam Q345B steel
Side beam 16mm channel steel (Material is Q235B steel)
Bottom Platform 3mm checquered steel plate
Side wall Optional
Brake chamber Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks
ABS Optional
Valve Wabco valve (especial for exporting market)
Light LED Light (especial for exporting market)
Voltage 24V
Receptacle 7 ways (7 wire harness)
Tool box One piece 1m *0.5m*0.5m ( size can be customized)
Painting 1 cost of anticorrosive primer, 2 coats of final paint, color advised by customer
Shipping terms By bulk vessel, RORO, or 40HQ container
Any parts fitted could according to clients request, contact us to get more.

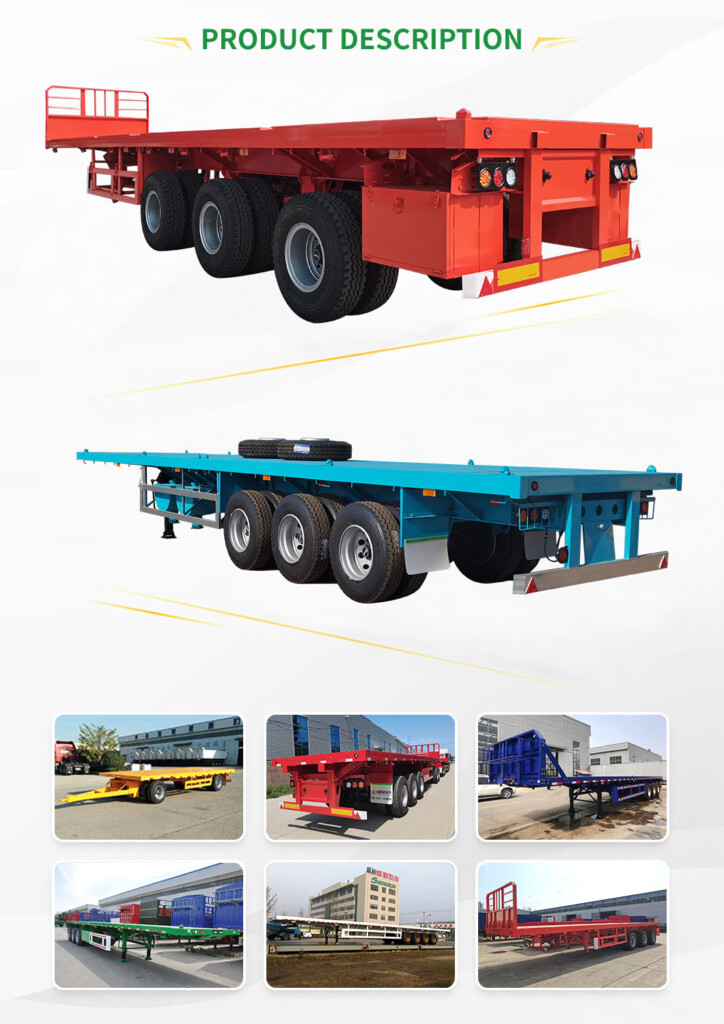

Shengrun flatbed container semi trailer dedicated to the transport of various containers, and also can be used to transport ordinary growth goods with its platform. It has sufficient strength, and mainly used in transport system, such as ships, ports, routes, highways, transit stations, bridges, tunnels, multimedia transport system.

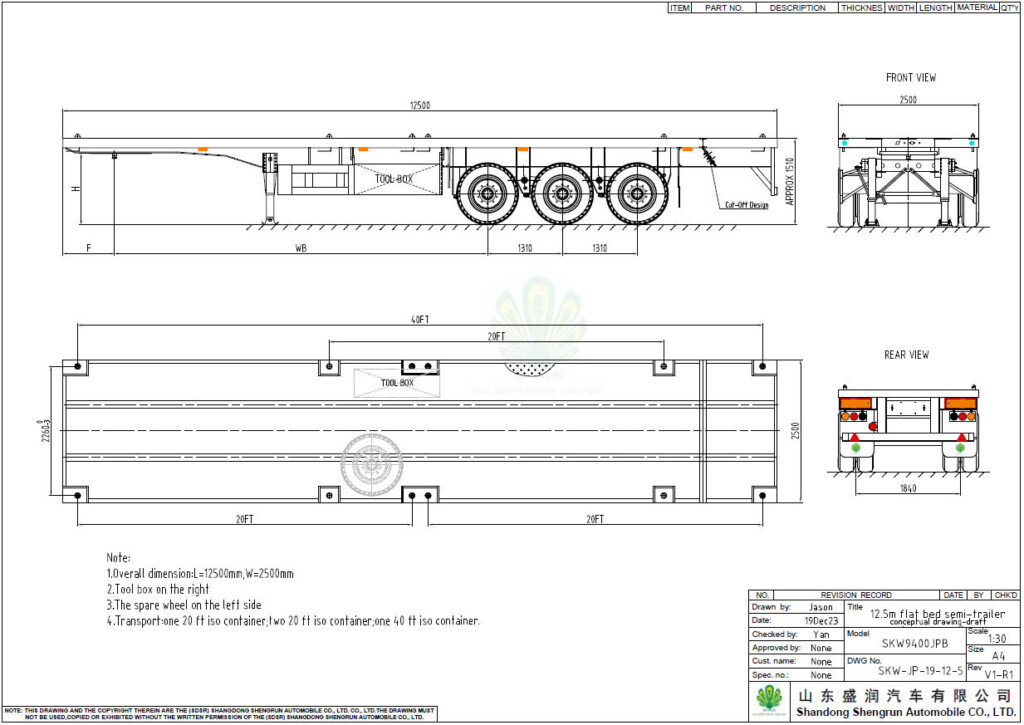

40ft Flatbed Container Trailer can carry 40ft and two 20ft containers.The flatbed trailer capacity ranges from 20 tons to 80 tons with 2 axle, 3 axles, and 4 axles.
We use high quality tensile steel to reduce beam fracture probability.The main beam is opting for high tensile steel Q345B and axle can be selected of BPW or FUWA brand. We adopt world famous brand of parts, like JOST, WABCO braking valve etc.
Established in 1982, we are a professional manufacturer of semi trailers, provide customized service, design as the customers’ every request.
We have a professional trailer design department , rich production experience, short delivery time. Our factory has passed ISO9001 quality system certification. Our phone service 24 hours service for you. Our cooperation can be ODM or OEM mode.

Transportation
We usually adopt shipping by bulk cargo, flat rack, container container and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trailers will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:10-20 working days after payment receipt confirmed (based on actual quantity).
Packing:Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.

After-sales service
1.12months for main parts (engine, axle, body and beam, etc).
2. Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports.
4. Engineer available service oversea.

FAQ:
Q1. Are you a manufacturer?
Yes, we have been in special vehicle manufacturing and marketing for over 25 years.

Q2. What markets do your vehicle export to?
Europe, North & South America, South-East Asia, Africa, Oceanica, Middle East countries etc.

Q3. What information should I let you know if I want to get a quotation?
Please let us know your purpose, road condition, cargo type, tons of your cargo, dimensions of the trailer, quantity etc. The more info you provide, the more accurate model and the price you will get.

Q4. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.

Q5. How can I get the price of your vehicle?
You can connect with us through any contact information. Our personalized service person will respond to you within 24 hours.
