| Specification for Flour Tanker Trailer | |
| Manufacturer | Shandong Shengrun Automobile Co., Ltd. |
| Type | Flour tanker trailer |
| Shape | Elliptical, circular type shape |

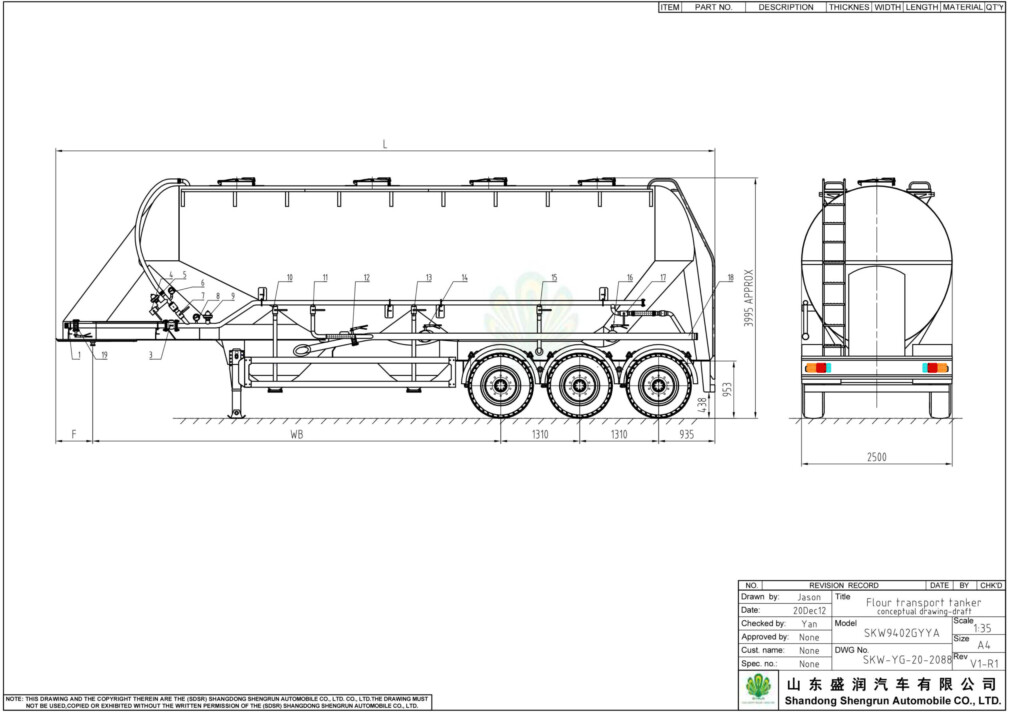

| Dimension | 9500-13000*2500*3900mm ( can be customized ) |
| Payload | 28T – 70tons |
| Volume | 28000liter – 70000liter |
| Tare weight | 9500kg |
| Axle | 3 FUWA 13ton axle |

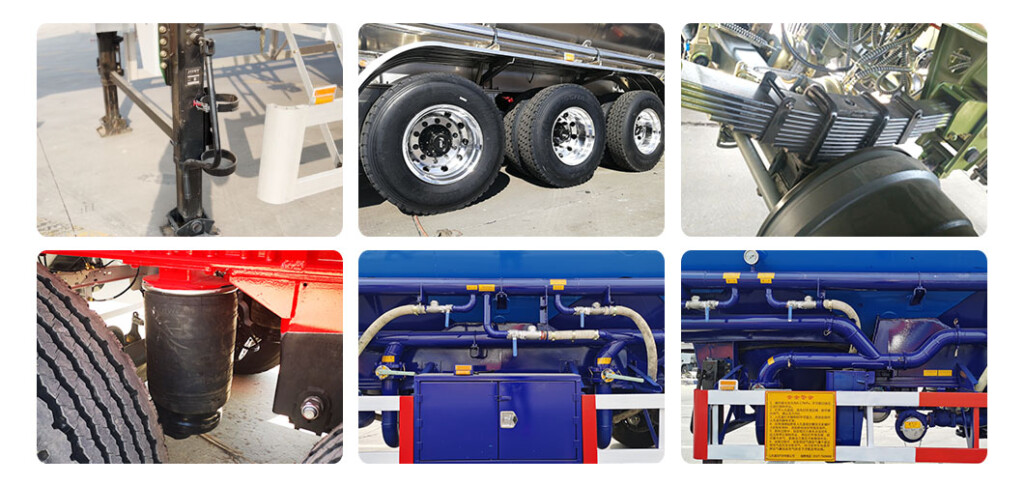

| Suspension | Mechanical suspension German type HJ brand |
| Leaf spring | Leaf spring 10pcs |
| Manhole cover | 500mm manhole cover .2 sets |
| Tire | 12R22.5 double star brand 12pcs |
| Wheel rim | 9.0-22.5 better brand 12pcs |
| Discharge valve | 4″disc valve |
| Outlet pipe | 4″rubber hose.6m |
| Kingpin | JOST brand 2″ bolt-in king pin |
| Landing gear | JOST brand two-speed, manual operating ,heavy duty landing gear 24T |
| Engine | Diesel engine: weichai brand model: 4102. |
| Air compressor | 37 KW, 0.2Mpa. 1000r/Min |
| Compartment | Single |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | Optional |
| Light | LED 8 side lights and 2 rear lights 2 width lamp |
| Air-charging system | 2″main hole.2″check valve .1.5″safe valve.0.4Mpa.gauge |
| Quadratic blow | 1″ diameter check valve |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
| Date of delivery | 20 days after we received 30% of contract value T/T down payment. |

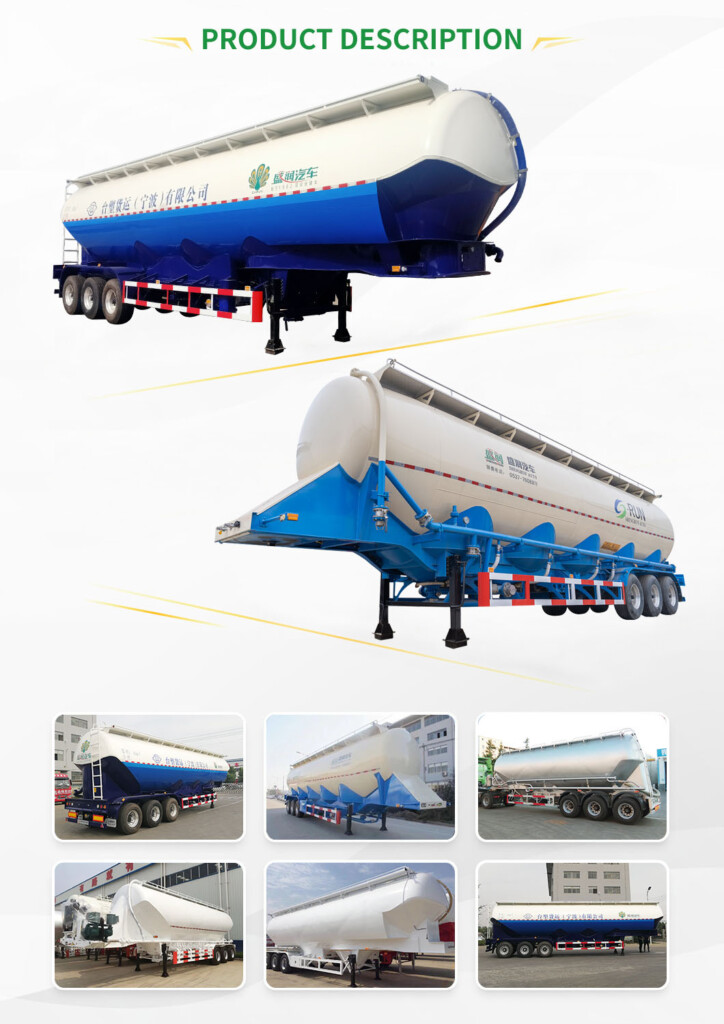

Shengrun Flour tank trailer is suitable for carrying flour and other light powder material,mainly transports edible powdered food wheat flour. Flour tanker semi trailer capacity 20 to 30 ton, volume 40 to 60 cbm. In order to keep the quality of food material, Shengrun wheat flour trailer adopts stainless steel material or Aluminium alloy material.

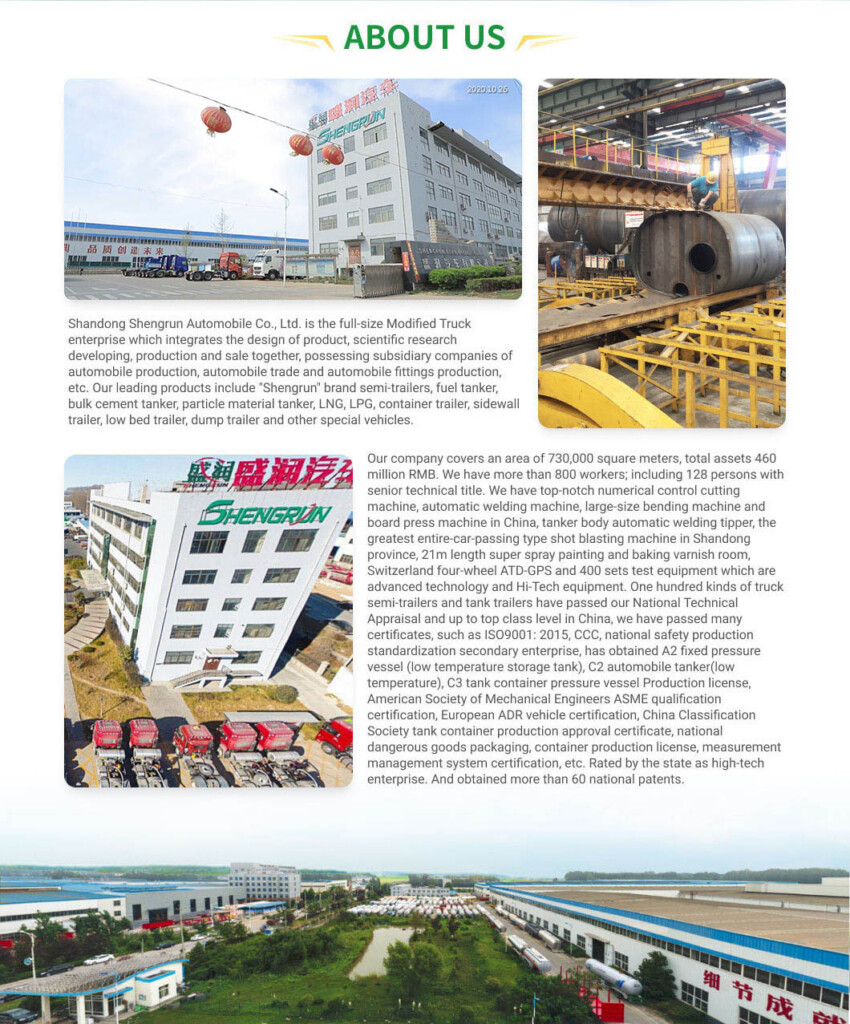

Established in 1982, we are a professional manufacturer of semi trailers, provide customized service, design as the customers’ every request.
We have a professional trailer design department , rich production experience, short delivery time. Our factory has passed ISO9001 quality system certification. Our phone service 24 hours service for you. Our cooperation can be ODM or OEM mode.
Transportation
We usually adopt shipping by bulk cargo, flat rack, container container and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trailers will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:10-20 working days after payment receipt confirmed (based on actual quantity).
Packing:Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales service
1.12months for main parts (engine, axle, body and beam, etc).
2. Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports.
4. Engineer available service oversea.
FAQ:
Q1. Are you a manufacturer?
Yes, we have been in special vehicle manufacturing and marketing for over 25 years.
Q2. What markets do your vehicle export to?
Europe, North & South America, South-East Asia, Africa, Oceanica, Middle East countries etc.
Q3. What information should I let you know if I want to get a quotation?
Please let us know your purpose, road condition, cargo type, tons of your cargo, dimensions of the trailer, quantity etc. The more info you provide, the more accurate model and the price you will get.
Q4. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.
Q5. How can I get the price of your vehicle?
You can connect with us through any contact information. Our personalized service person will respond to you within 24 hours.
