| Specification For Low Bed Semi Trailer | |
| Manufacturer | Shandong Shengrun Automobile CO., LTD. |
| Type | Low bed semi trailer |
| Dimension | 9500-16500*2500-3000*3200 (can be customized) |
| Tare weight | Approx. 8000kgs-12800kgs |
| Capacity | 30 ton – 100 ton |
| Main beam | Q345B steel |
| Side beam | 16 mm- 25 mm channel steel (Material is Q235 steel) |
| Platform | 3 mm – 5 mm thickness chequered plate or can be optional |
| Gooseneck | For chosse |
| Ladder | Manual type or Hydraulic type |
| Axle | 13/16T, FUWA / BPW / SHENGRUN brand etc |
| King pin | Jost 2.0 or 3.5 inch bolted type |
| Suspension | Mechanical suspension / Germany type or America type / Air suspension |
| Leaf spring | 90 mm(Width) * 13 mm(Thickness) * 10 layer or 100 mm * 12 mm * 12 layer |
| Braking system | WABCO 6 relay valve, spring brake chamber, 2 pieces of 45L air tank |
| Rim | 9.0*22.5 / 8.0-20 / 8.5-20 |
| Tire | 12.00R22.5 ; 315/80R22.5; 11.00R20; 12.00R20 brand can be optional |
| ABS | Optional |
| Fire extinguiser | Two pieces 4 kgs |
| Spare tire carrier | 2 pieces |
| Safety guard | With standard |
| Painting | 1 coat of anticorrosive primer, 2 coats of finla painting, Color advised by customer. |
| Accessories | One standard tool box |
| Light | LED light |
| Shipping terms | By bulk vessel or RORO or 40 HQ container |
| Any parts fitted could according to clients request, contact us to get more. | |
| Model NO. | SKW9401TDP | Tire Number | 16 |
| ABS Anti-lock Braking System | ABS Anti-lock Braking System | Material | carbon steel |
| Condition | New | Max Payload | 80t |
| Dimession | 13000*3000*1650 | Pay Load | 60t |
| Suspension | Leaf Spring Suspension | Trademark | SHENGRUN |
| Transport Package | Nude | Specification | CE CCC SGS |
| Origin | Liangshan Shandong China | HS Code | 3708960665 |
| Manufacturer | Shandong Shengrun Automoblie Co., Ltd |
| Model Nunber | SKW9350TDP/SKW9402TDP |
| Tare Weight | About 8.5T-13T |
| Dimension | 13000mm*2500mm-3500mm*1650mm (Size can be choose freely) |
| Loading Capacity | 40T-100T |
| Axle | 13T/16T, FUWA/BPW/Huajing Brand |
| Rim | 8.00-20 (Special for export market) 17pieces |
| Tire | 11.00R20 17pieces |
| Suspension | Mechanical suspension (Germany Type or America Type) or Air suspension(China brand or BPW brand) |
| Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer (especial for exporting market ) |
| King pin | JOST brand 2.0 or 3.5 inch bolts type or Welding type |
| Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
| Main beam | Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, |
| down plate is 16mm-25mm ; Material is Q345B Steel . | |
| Side beam | 16mm-25mm channel steel ( Material is Q235steel ). |
| Bottom Platform | 5mm thickness diamond steel plate or can be optional |
| Ladder | Manual type or Hydraulic type |
| Gooseneck | For choose |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two pieces of 45L air tanks |
| ABS | Optiona |
| Valve | WABCO valve |
| Light | LED light (Special for export market) |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece, 1m x 0.5m x 0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |

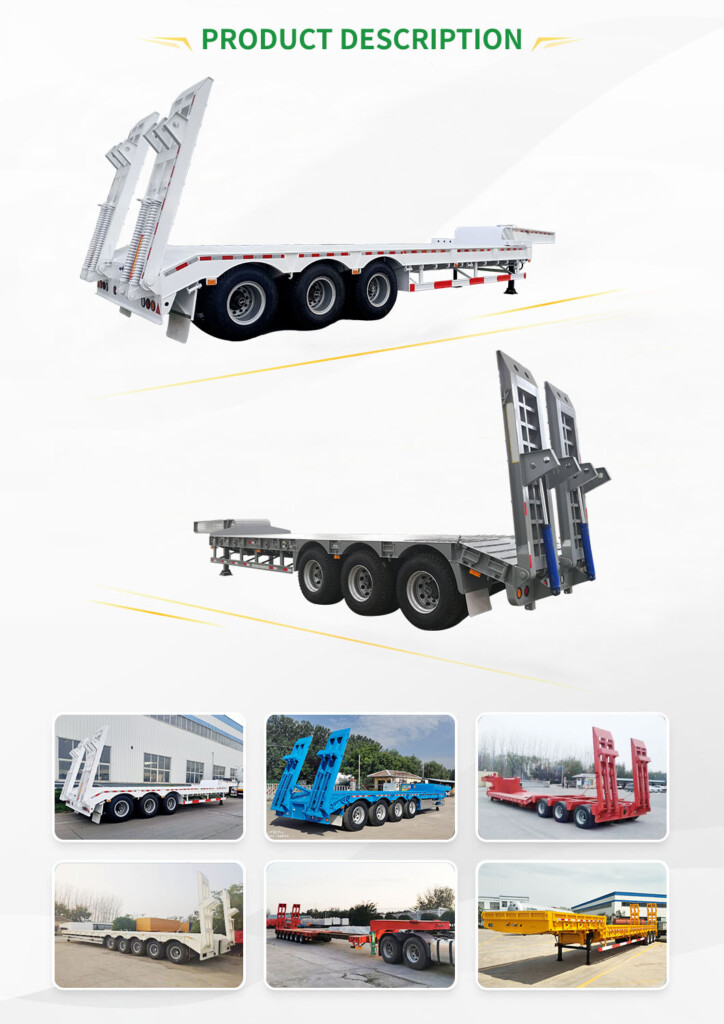

Shengrun Low Bed Semi Trailer, as known as low bed trailer, lowbed trailer, lowboy trailer. Our lowbed trailer choose Q345B carbon high-tensile steel material. We adopt world famous brand of parts, like JOST, WABCO braking valve etc.
We are manufacturer, provide customized service, design as the customers’ every request.
We have a professional trailer design department , rich production experience, short delivery time. Our phone service 24 hours service for you. Our cooperation can be ODM or OEM mode.
Transportation
We usually adopt shipping by bulk cargo, flat rack, container container and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trailers will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:10-20 working days after payment receipt confirmed (based on actual quantity).
Packing:Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales service
1.12months for main parts (engine, axle, body and beam, etc).
2. Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports.
4. Engineer available service oversea.
FAQ:
Q1. Are you a manufacturer?
Yes, we have been in special vehicle manufacturing and marketing for over 25 years.
Q2. What markets do your vehicle export to?
Europe, North & South America, South-East Asia, Africa, Oceanica, Middle East countries etc.
Q3. What information should I let you know if I want to get a quotation?
Please let us know your purpose, road condition, cargo type, tons of your cargo, dimensions of the trailer, quantity etc. The more info you provide, the more accurate model and the price you will get.
Q4. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.
Q5. How can I get the price of your vehicle?
You can connect with us through any contact information. Our personalized service person will respond to you within 24 hours.
