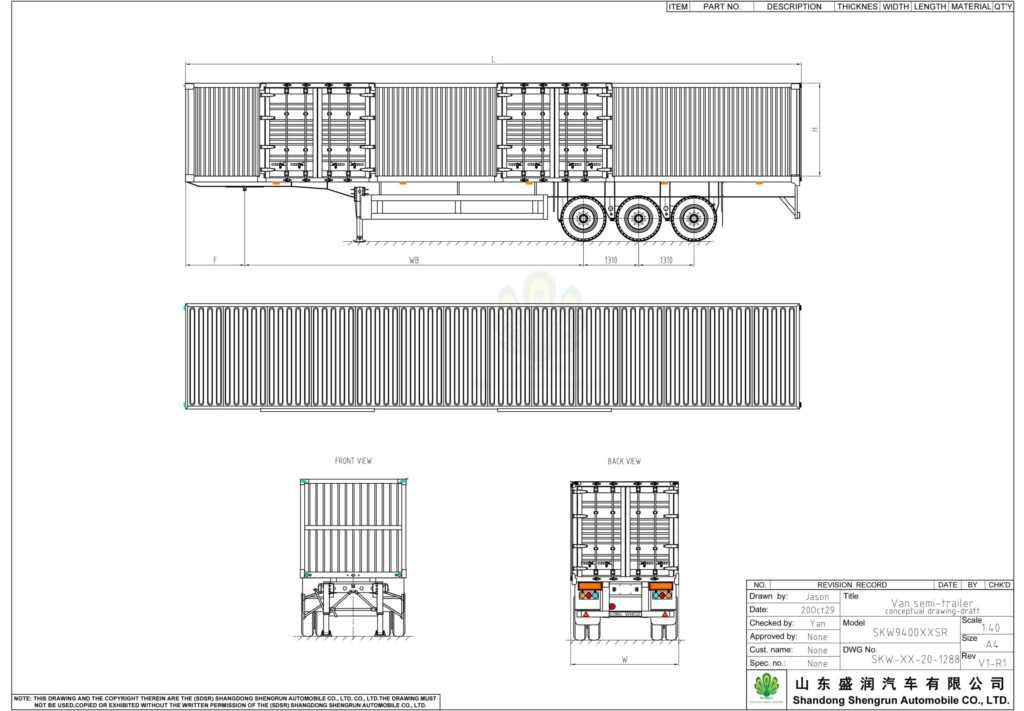

| Specification For Van or Box semi trailer | |
| Manufacturer | Shandong Shengrun Automobile CO., LTD. |
| Type | Van or Box semi trailer |
| Tare Weight | Approx. 6.2 T |
| Dimension | 12400*2500*3550mm |
| Loading Capacity | 30-100 T |

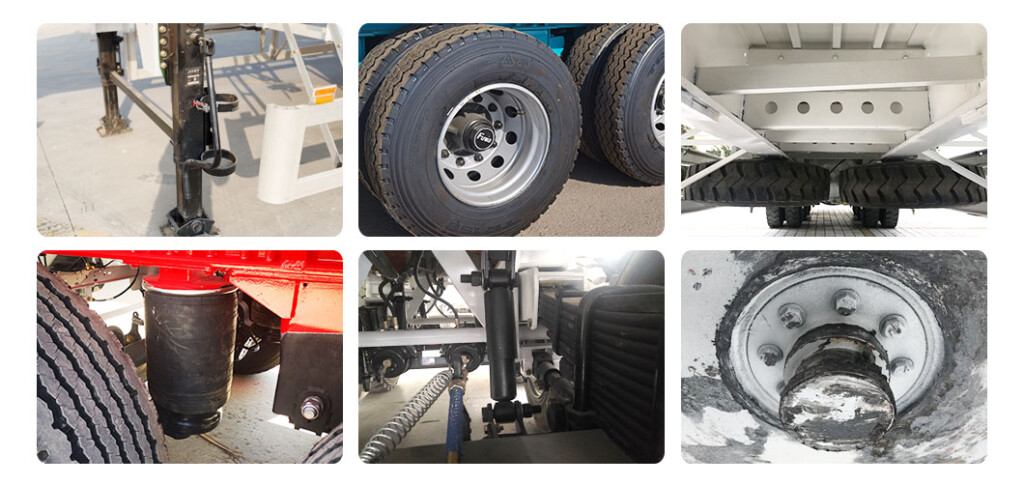

| Axle | 13T/16T, FUWA/BPW/SHENGRUN, etc |
| Rim | 9.00*22.5/8.00-20/8.5-20 |
| Suspension | Mechanical suspension(Germany type or America type) or Air suspension |
| Leaf Spring | 90(width)mm*13(thickness)mm*10 layer(especial for exporting market) |
| King pin | Jost brand 2.0 or 3.5 inch |
| Spport leg | Jost brand two speed |
| Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm; Material is Q345B steel |
| Side beam | 16mm channel steel (Material is Q235B steel) |
| Bottom Platform | 3mm checquered steel plate |
| Side wall | 600 mm height (can be customized) |
| Brake chamber | Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks |
| ABS | Optional |
| Twist locks | Optional |
| Valve | Wabco valve (especial for exporting market) |
| Light | LED Light (especial for exporting market) |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece 1m *0.5m*0.5m ( size can be customized) |
| Painting | Complete chassis sand blasting to clean rust, 1 cost of anticorrosive primer, 2 coats of final paint, color advised by customer |
| Shipping terms | By bulk vessel, RORO, or 40HQ container |
| Any parts fitted could according to clients request, contact us to get more. | |

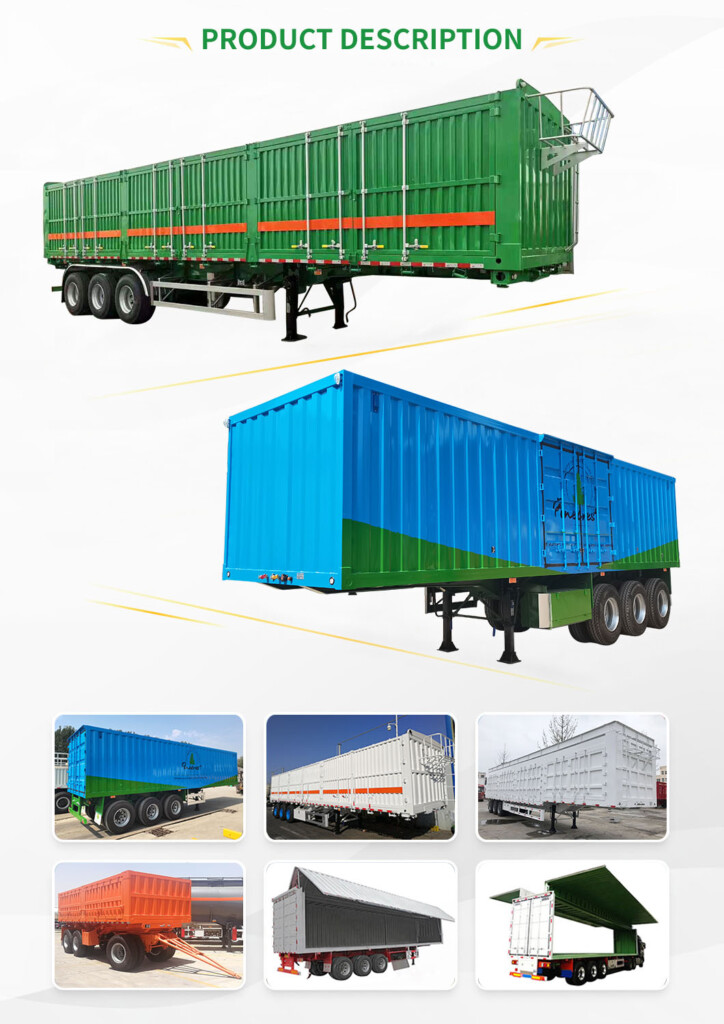

Shengrun van semi trailer series of products for home appliances, textile goods, grain, coal and others. The inside of the box plus insulation, but also can be designed as incubator, coupled with food-grade coating can also be used to transport food or food. Car top blockade, push-pull open, open, open with tarpaulin pole and so on.

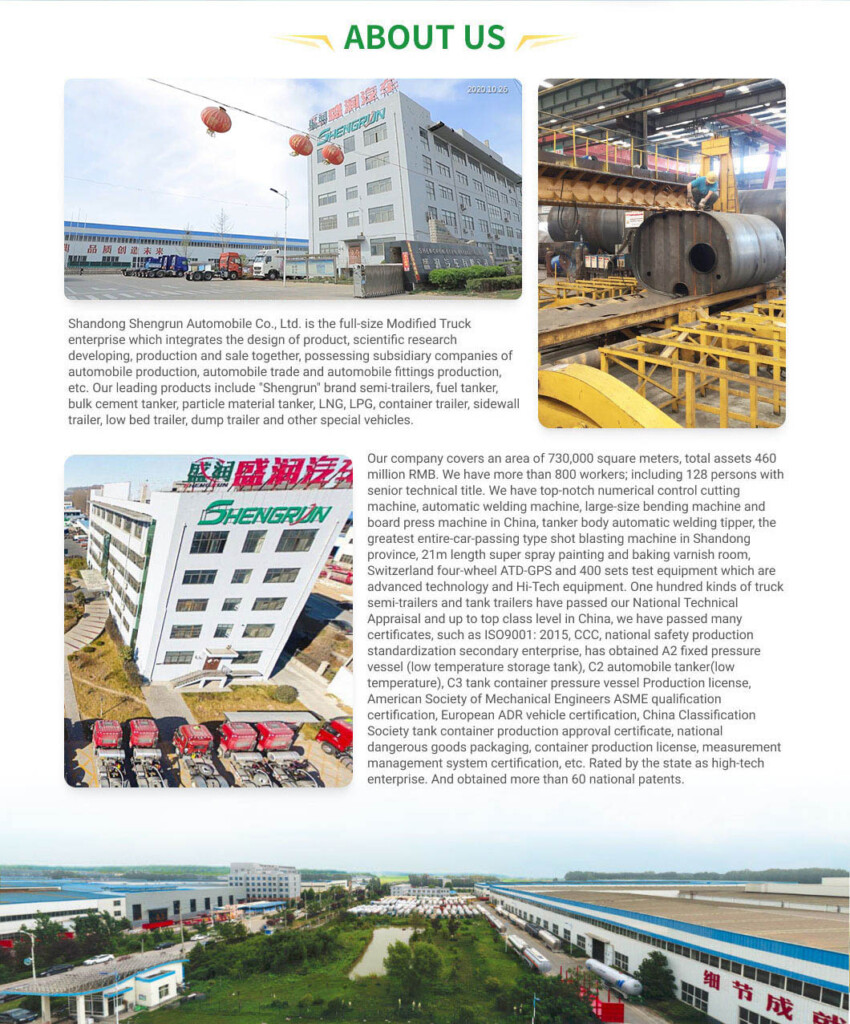

Established in 1982, we are a professional manufacturer of semi trailers, provide customized service, design as the customers’ every request.

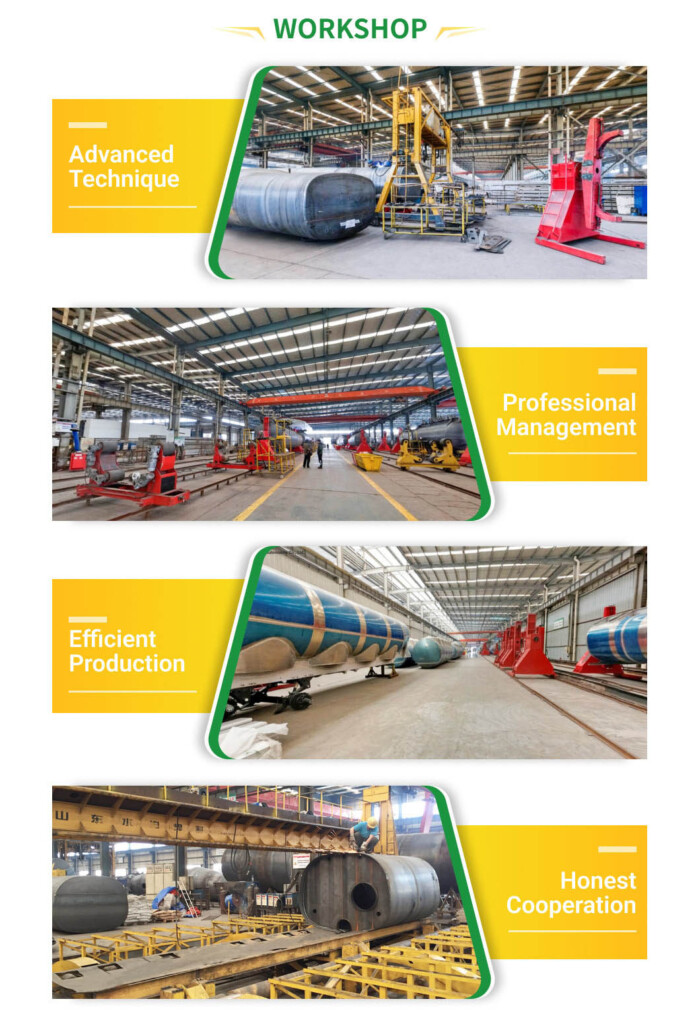

We have a professional trailer design department , rich production experience, short delivery time. Our factory has passed ISO9001 quality system certification. Our phone service 24 hours service for you. Our cooperation can be ODM or OEM mode.
Transportation
We usually adopt shipping by bulk cargo, flat rack, container container and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trailers will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:10-20 working days after payment receipt confirmed (based on actual quantity).
Packing:Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales service
1.12months for main parts (engine, axle, body and beam, etc).
2. Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports.
4. Engineer available service oversea.
FAQ:
Q1. Are you a manufacturer?
Yes, we have been in special vehicle manufacturing and marketing for over 25 years.
Q2. What markets do your vehicle export to?
Europe, North & South America, South-East Asia, Africa, Oceanica, Middle East countries etc.
Q3. What information should I let you know if I want to get a quotation?
Please let us know your purpose, road condition, cargo type, tons of your cargo, dimensions of the trailer, quantity etc. The more info you provide, the more accurate model and the price you will get.
Q4. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.
Q5. How can I get the price of your vehicle?
You can connect with us through any contact information. Our personalized service person will respond to you within 24 hours.
